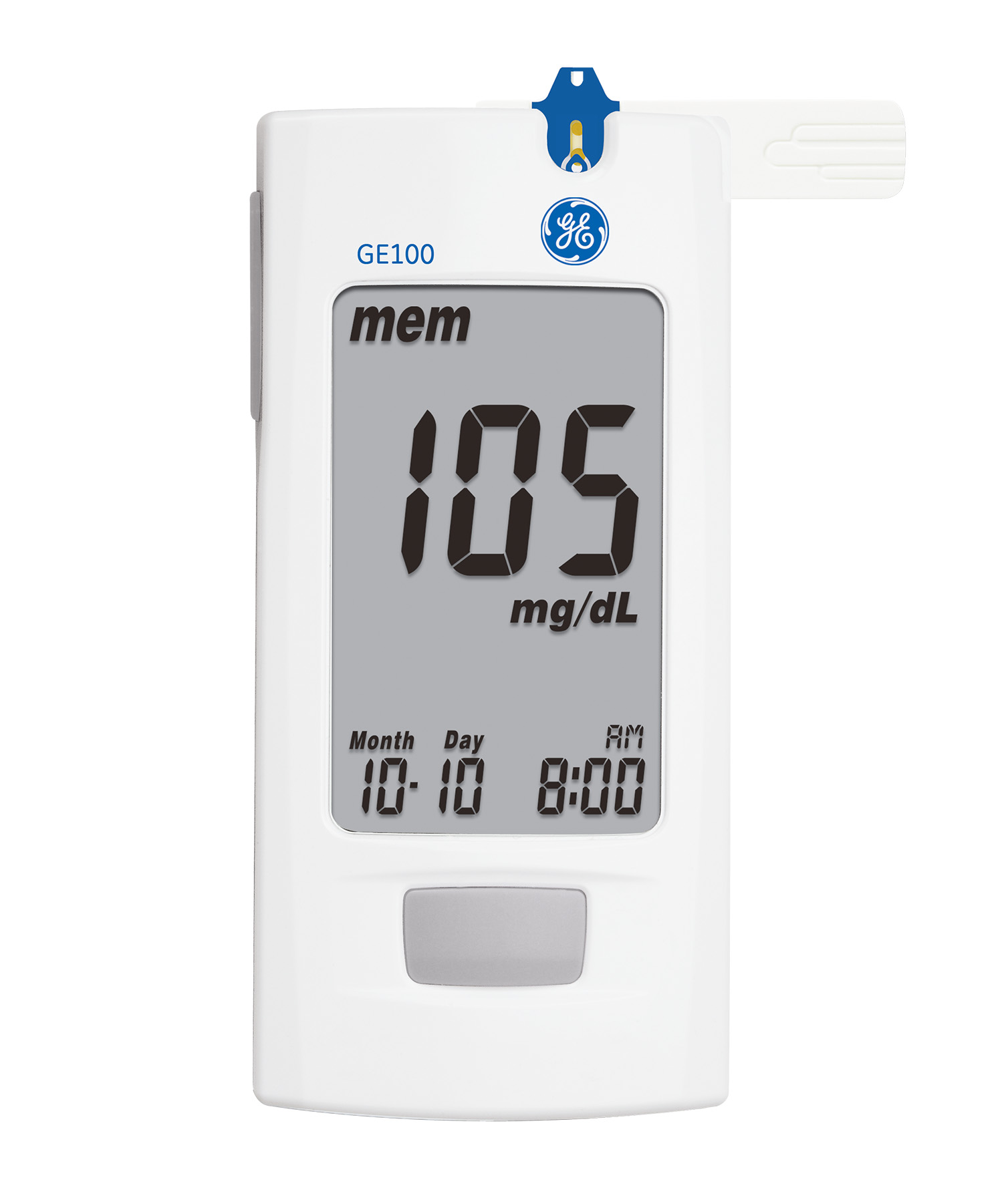

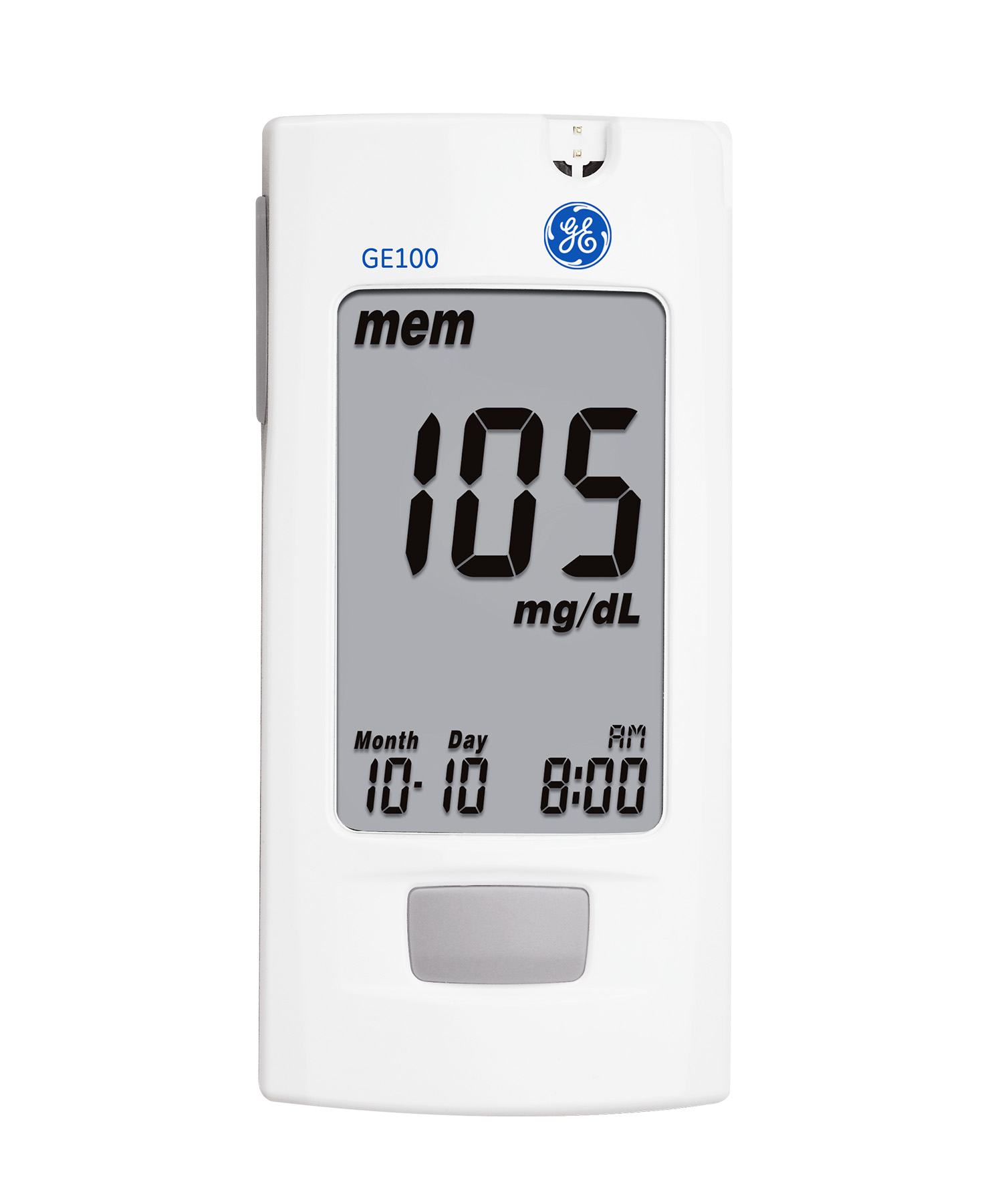

GE100
Simple and Accessible
Make life more simple with the GE100, our debut model in the market. The GE100 is an easy to access model for beginners. It features an extra large display screen suitable for elderly users.
-
Auto-Coding
Eliminates the need for manual coding and delivers maximum accuracy.
-
Large Display
Easy to view results.
-
Side-Insert Design
Easy to handle and prevents blood contact for excellent hygiene.
-
Tiny Blood Sample
Requires only 1.0μL.
-
Trusted Accuracy

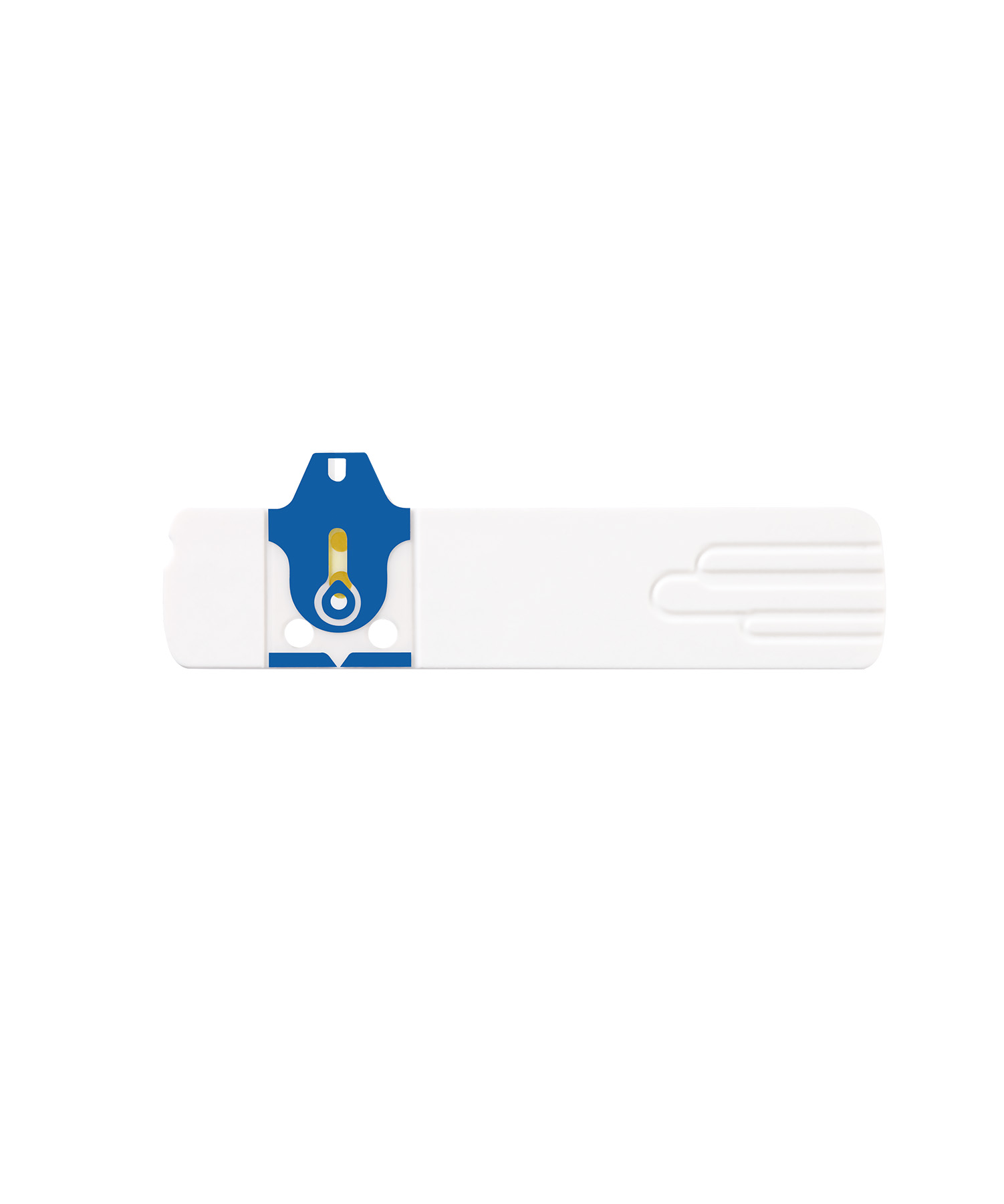

Utilizes gold electrodes and a patented strip structure to provide accurate and reliable results.
How it works
-
1

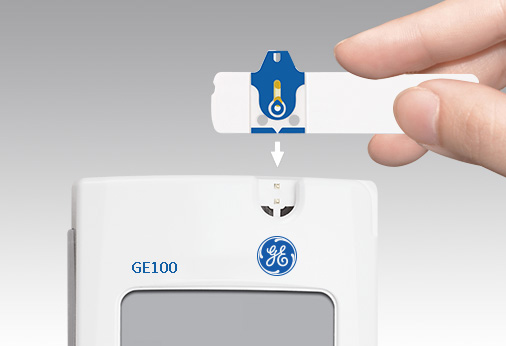

Insert the strip into the socket of the meter. Calibration will occur automatically. -
2

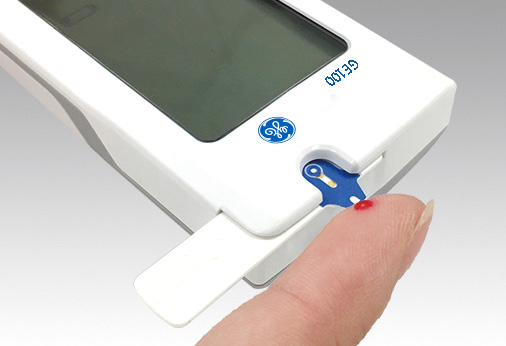

Touch a blood sample against the sample entry port of the strip. -
3

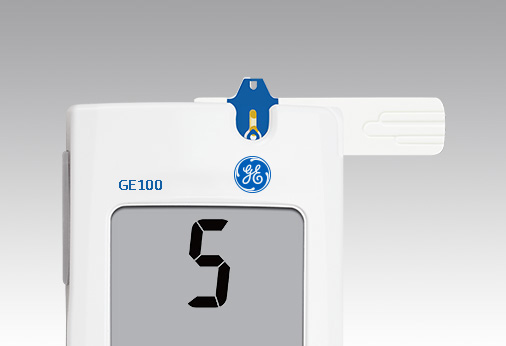

After 5 seconds, the test result will appear. -
4

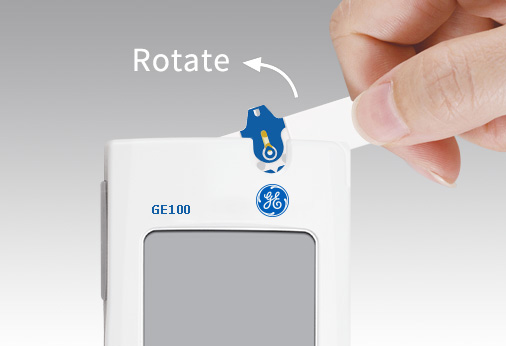

Rotate and pull upwards to remove the test strip.
GE100 Specifications
| Test strip | GE100 |
|---|---|
| Coding | Auto-coding |
| Enzyme / Measurement technology | GOD / Electrochemical sensor |
| Blood sample source | Capillary whole blood drawn from fingertip, palm or forearm |
| Minimum sample volume | 0.75 microliters |
| HCT range | 30 - 57% |
| Measuring range | 0.6 - 33.3 mmol/L (10 - 600 mg/dL) |
| Meter dimensions (L x W x H) | 98.0 x 46.0 x 17.5 mm |
| Display area (L x W) | 53.0 x 32.0 mm |
| Weight (with battery) | 53.0 ± 5 g |
| Power supply | 1 × CR2032 battery |
| Memory capacity | 500 blood glucose test results with date and time |
| Operating temperature | 10 - 40°C (50 - 104°F) |
| Operating relative humidity | 10 - 90% |
| Meter storage conditions | -10 - 60°C (14 - 140°F) |
| Test strip storage conditions | 4 - 30°C (39 - 86°F), 10 - 90% relative humidity |
*Product specifications vary by region. Contact our sales representative for more details.
