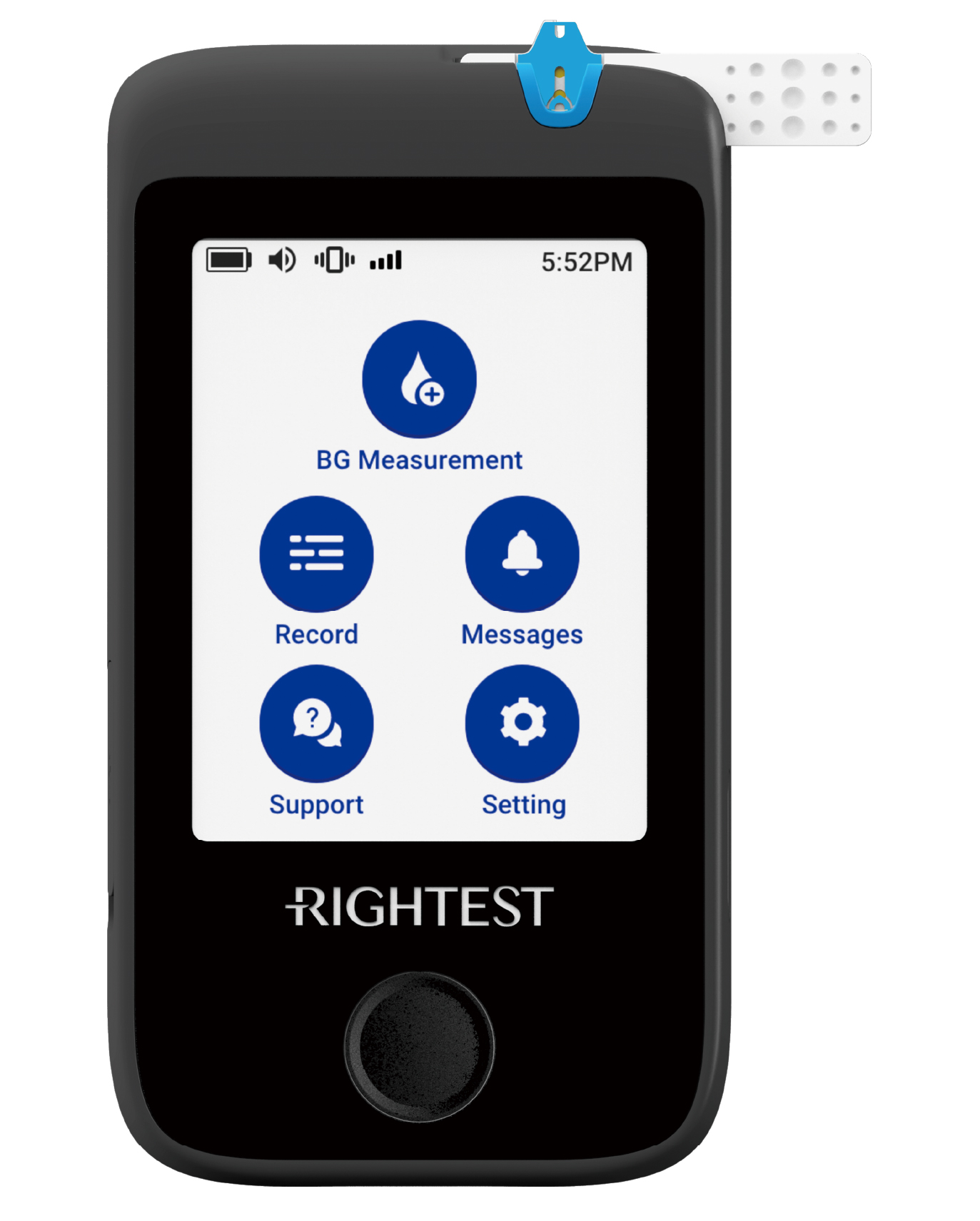

Max Tel
_banner.jpg)
Connected Healthcare For Everyone
Transfer real-time blood glucose data via 4G LTE connection, achieving Remote Patient Monitoring (RPM). Intuitive experience from easy finger-tapping with a color touchscreen. Compatible with the 510k-approved test strip and shows similar performance.
-
4G LTE Connectivity
Real-time sync to cloud
-
-50.png)
Capacitive Touch Panel
2.8-inch color touchscreen
-
Wide HCT Range
Suitable for neonatal and anemic patients
-
Status Record
Notes for events of meals, exercise and carbohydrates
-
Auto-Coding
Eliminates the need for manual coding and delivers maximum accuracy
-
Side-Insert Design
Easy to handle and prevents blood contact for excellent hygiene
How it works
-
1

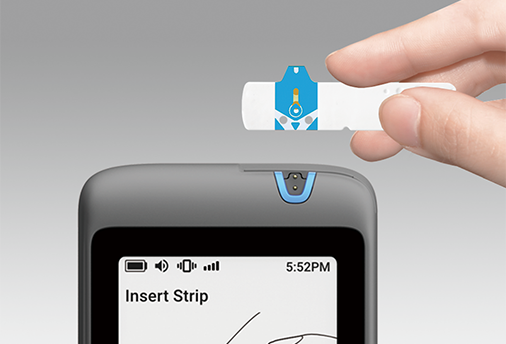

Insert the test strip and the meter will perform automatic coding. -
2

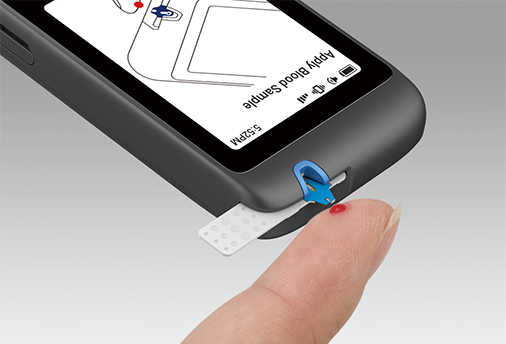

While the blood drop symbol is flashing, please apply a tiny blood sample. -
3

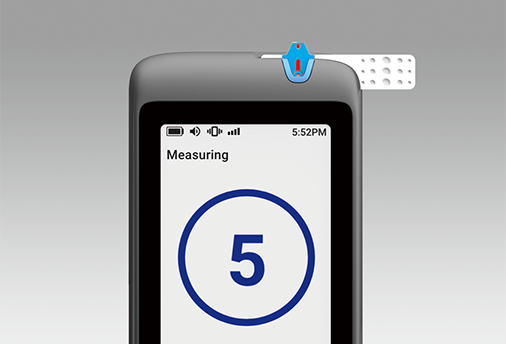

After 5 seconds, the test result appears. -
4

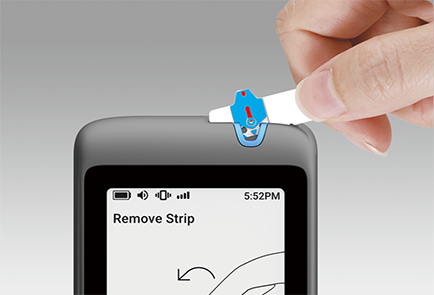

Take the test strip totally out of test strip port without touching blood sample.
Max Tel Specifications

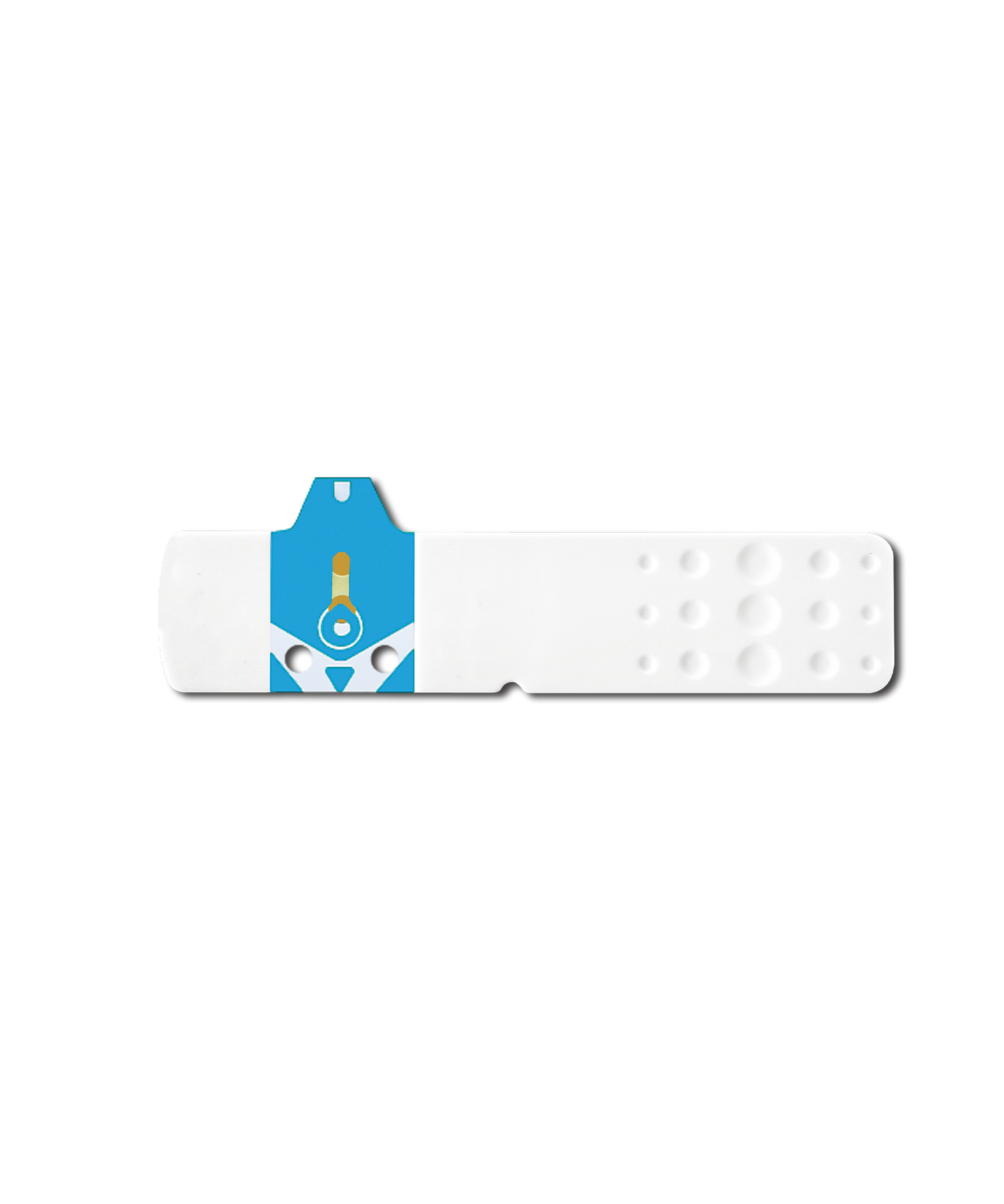

| Test strip | Glucose Test Strip | |
| Coding | Auto-coding | |
| Measurement technology | GDH / Electrochemical sensor | |
| Blood sample source | Capillary whole blood | |
| Minimum sample volume | 0.75 µL | |
| HCT range | 10 - 70% | |
| Measuring range | 0.6 - 33.3 mmol/L | |
| Test Time | 5 seconds | |
| Display area (L x W) | 40.7 x 40.2 mm | |
| Weight (with battery) | 95.0 ± 5 g | |
| Power supply | Non-replaceable and Rechargeable lithium battery (3.7V | |
| Memory capacity | 1000 test results with date and time | |
| Operating temperature | 6 - 44°C (43 - 111°F) | |
| Operating relative humidity | 10 - 90% | |
| Meter storage conditions | -10 - 55°C (14 - 131°F) | |
| Test strip storage conditions | 4 - 30°C (39 - 86°F) and 10 - 90% relative humidity | |
| Data transmission | LTE network | |
Downloads
- Max Tel User's Manual
- Test Strip Guide

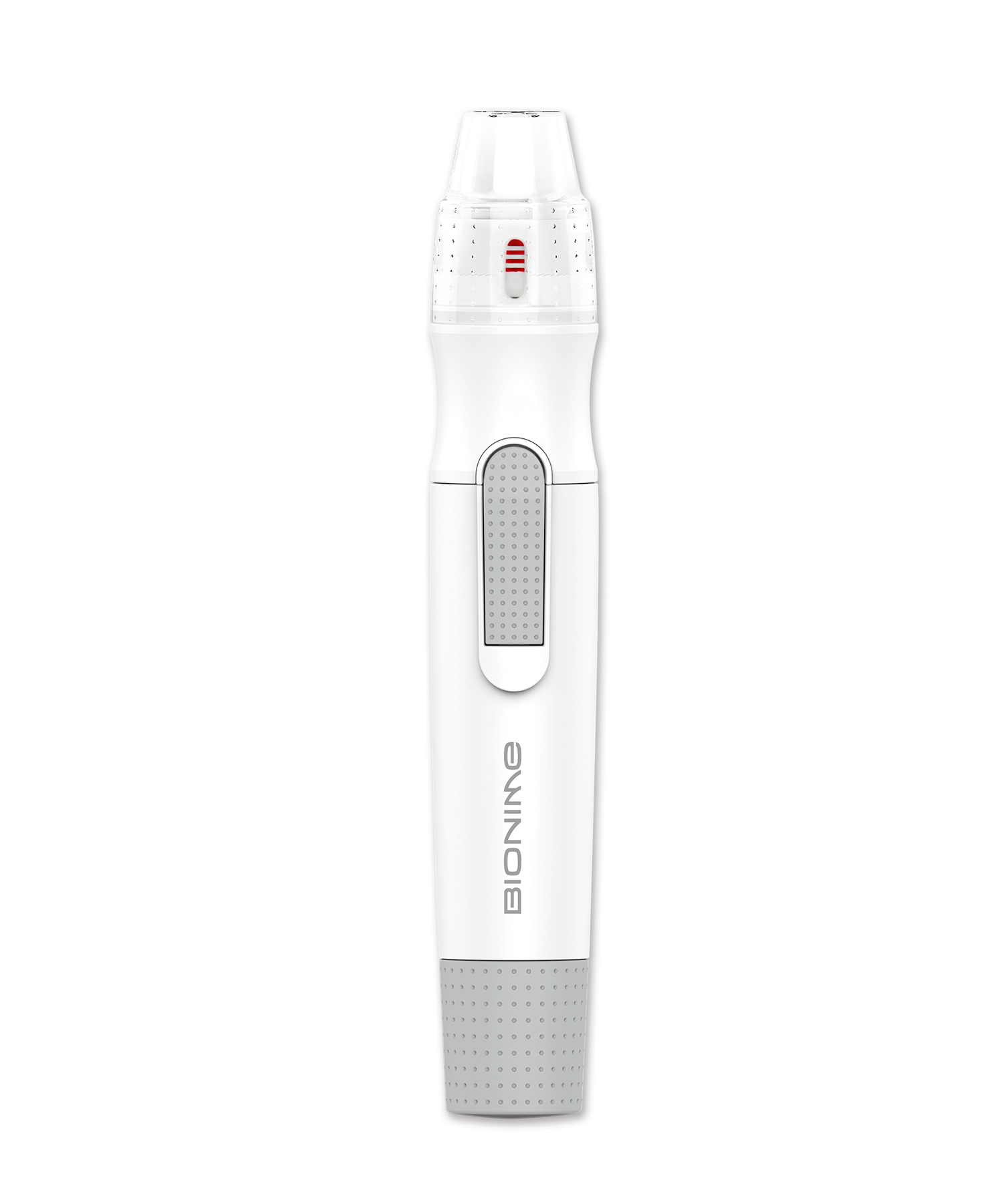

- Instructions for Lancing Device
